Working Procedure:

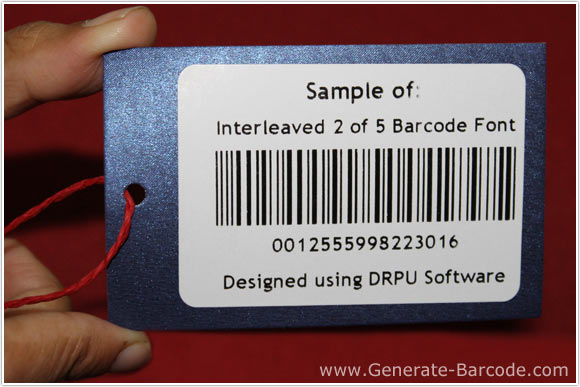

Sample of Interleaved 2 of 5 Barcode Font:

Sample of Interleaved 2 of 5 Fonts Barcode Font

You can see designed sample of Interleaved 2 of 5 Barcode font with the help of DRPU Barcode Maker Software.



Barcode Properties - Value:

Interleaved 2 of 5 Barcode Properties

Here we are showing Barcode designing view procedure to demonstrate you. Select Barcode Type and Technologies and set its barcode value like Data Source, Barcode value, Header, Footer, Bearer Bar, Narrow to Wide Ratio etc.



Barcode Properties - Size:

Interleaved 2 of 5 Barcode Properties - Size

Go to Size tab and set bar height, Density, Barcode value margins, Barcode header margins etc. according to your barcode label.



Card Properties:

Card Properties

Set Card Shape and size, card name, background image etc. for your designed barcode label.



Print Settings:

Print Settings

Click on Print icon from above standard tools and select any one print mode either Manual or Pre define label stock mode. Here we are using Manual Printing for demonstration purpose only.

In Manual mode, set entire required field manually as shown in above screen and click on Print button to proceed to print any number of barcode images.



Thermal Printer Printing Process:

Thermal Printer Printing Process

On Clicking Print Button, you will get your designed Interleaved 2 of 5 Barcode Font. Here, we have chosen Thermal Printer (Zebra TLP2844).
